无论是System.Draw.Color还是UnityEngine.Color对颜色操作的功能还是太少了,我们在用ps等调色面板使用的都是0-255范围的颜色值,但在图形层却使用的是0-1的浮点数,所以自己封了个支持多种Color操作的类型。
大写的RGB代表着0~255的整数。
小写rgb的范围是0~1的浮点数。
浮点转换整形使用四舍六入五求偶。
RGB转HSV公式:
R' = R/255
G' = G/255
B' = B/255
Cmax = max(R', G', B')
Cmin = min(R', G', B')
Δ = Cmax - Cmin

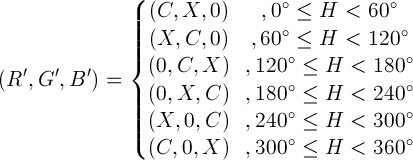

HSV转RGB公式:
C = V × S
X = C × (1 - |(H / 60°) mod 2 - 1|)
m = V - C
(R,G,B) = ((R'+m)×255, (G'+m)×255, (B'+m)×255)
C#实现:
using System; namespace com.imxqy.draw { public struct JColor { private float _r; private float _g; private float _b; private float _a; #region prop public float r { get => _r; set => _r = range1(value); } public float g { get => _g; set => _g = range1(value); } public float b { get => _b; set => _b = range1(value); } public float a { get => _a; set => _a = range1(value); } public int R { get => format1to255(_r); set => _r = format255to1(value); } public int G { get => format1to255(_g); set => _g = format255to1(value); } public int B { get => format1to255(_b); set => _b = format255to1(value); } public int A { get => format1to255(_a); set => _a = format255to1(value); } public string Hex { get => ToRGBAHex(); set { int len = value.Length; if (len < 6 || len > 9 || ((len == 9 || len == 7) && value.Substring(1) != "#")) throw new ArgumentOutOfRangeException("十六进制颜色错误"); //裁减掉#号 if (len == 7 || len == 9) value = value.Substring(1); if (len == 6) _a = 1f; else A = Convert.ToInt32(value.Substring(6, 2), 16); R = Convert.ToInt32(value.Substring(0, 2), 16); G = Convert.ToInt32(value.Substring(2, 2), 16); B = Convert.ToInt32(value.Substring(4, 2), 16); } } private float h { get { float cmax = v; float c = rgbMax - rgbMin; float rst = 0; if (c == 0) rst = 0; else if (cmax == this._r) rst = 60 * (_g - _b) / c; else if (cmax == this._g) rst = 60 * (_b - _r) / c + 2; else if (cmax == this._b) rst = 60 * (_r - _g) / c + 4; if (rst < 0) rst += 360; return rst; } set => hsvToRgb(value, s, v); } private float s { get { if (this.v == 0) return 0; float c = rgbMax - rgbMin; return c / rgbMax; } set => hsvToRgb(h, value, v); } private float v { get => Math.Max(Math.Max(this._r, this._g), this._b); set => hsvToRgb(h, s, value); } public int H { get => (int)Math.Round(h); set => h = range(value, 0, 360); } public int S { get => (int)Math.Round(s * 100); set => s = range(value, 0, 100) / 100f; } public int V { get => (int)Math.Round(v * 100); set => v = range(value, 0, 100) / 100f; } private float rgbMin => Math.Min(Math.Min(_r, _g), _b); private float rgbMax => Math.Max(Math.Max(_r, _g), _b); private void hsvToRgb(float _h, float _s, float _v) { float _r = this._r; float _g = this._g; float _b = this._b; float c = _v * _s; float x = c * (1 - Math.Abs((h / 60) % 2 - 1)); float m = _v - c; if (0 <= _h && _h < 60) { _r = c; _g = x; _b = 0; } else if (60 <= _h && _h < 120) { _r = x; _g = c; _b = 0; } else if (120 <= _h && _h < 180) { _r = 0; _g = c; _b = x; } else if (180 <= _h && _h < 240) { _r = 0; _g = x; _b = c; } else if (240 <= _h && _h < 300) { _r = x; _g = 0; _b = c; } else if (300 <= _h && _h < 360) { _r = c; _g = 0; _b = x; } else { _r = 1; _g = 1; _b = 1; } this._r = _r + m; this._g = _g + m; this._b = _b + m; } #endregion #region ctor public JColor(float r, float g, float b) { this._r = r; this._g = g; this._b = b; this._a = 1; } public JColor(float r, float g, float b, float a) { this._r = r; this._g = g; this._b = b; this._a = a; } public JColor(int r, int g, int b) { _r = 1; _g = 1; _b = 1; _a = 1; this.R = r; this.G = g; this.B = b; } public JColor(int r, int g, int b, int a) { _r = 1; _g = 1; _b = 1; _a = 1; this.R = r; this.G = g; this.B = b; this.A = a; } public JColor(string hex) { _r = 1; _g = 1; _b = 1; _a = 1; this.Hex = hex; } #endregion #region range private float range1(float num) => range(num, 0, 1); private int range100(int num) => range(num, 0, 100); private int range255(int num) => range(num, 0, 255); private float range(float num, float min, float max) { if (num < min) return min; else if (num > max) return max; else return num; } private int range(int num, int min, int max) { if (num < min) return min; else if (num > max) return max; else return num; } #endregion #region format private float format255to1(int i) => i / 255f; private int format1to100(float value) => (int)Math.Round(value * 100f); private int format1to255(float f) => (int)Math.Round(f * 255f); private float format100to1(int i) => i / 100f; #endregion #region toString public override string ToString() { return ToRGBAHex(); } public string ToRGBHex() { return R.ToString("X2") + G.ToString("X2") + B.ToString("X2"); } public string ToRGBAHex() { return R.ToString("X2") + G.ToString("X2") + B.ToString("X2") + A.ToString("X2"); } public string ToRGBString() { return R.ToString() + "," + G.ToString() + "," + B.ToString(); } public string ToRGBAString() { return R.ToString() + "," + G.ToString() + "," + B.ToString() + "," + A.ToString(); } public string TorgbString() { return r.ToString() + "," + g.ToString() + "," + b.ToString(); } public string TorgbaString() { return TorgbString() + "," + a.ToString(); } public int ToColorLong() { return Convert.ToInt32(ToRGBHex()); } #endregion #region operator /// <summary> /// 增加亮度 /// </summary> /// <param name="jcolor"></param> /// <param name="value"></param> /// <returns></returns> public static JColor operator +(JColor jcolor, int value) { int v = jcolor.V; jcolor.V = v + value; return jcolor; } /// <summary> /// 减少亮度 /// </summary> /// <param name="jcolor"></param> /// <param name="value"></param> /// <returns></returns> public static JColor operator -(JColor jcolor, int value) { jcolor.V -= value; return jcolor; } #endregion } }
参考资料:https://www.rapidtables.com/convert/color/rgb-to-hsv.html
